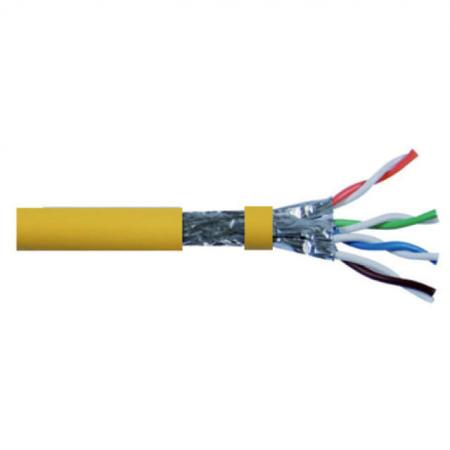

Cáp CAT8 (CRXCONEC)

Mã sản phẩm: CRXCONEC Cat8

Lĩnh vực: THIẾT BỊ MẠNGCÁP ĐỒNG (LAN)

CRXCONEC Cat8 theo tiêu chuẩn ANSI / TIA-568.2-D, cung cấp một tiêu chuẩn mới cho giải pháp cáp mạng và đưa cáp đồng xoắn đôi bước vào kỷ nguyên mới tiếp theo. Quy định Cat8.1 tiếp tục giao diện RJ45, cung cấp khả năng truyền khoảng cách ngắn 30M trong liên kết kênh và hỗ trợ truyền 40G. Sơ đồ đi dây Cat 8 sẽ được sử dụng chủ yếu trong trung tâm dữ liệu. Vì vậy khi xây dựng một trung tâm dữ liệu mới, nên sử dụng cáp ethernet CAT.8 cho hệ thống cấu trúc cáp để đáp ứng băng thông cao hơn trong tương lai.

Features

  • GHMT CAT8 channel performance verified.
  • Complied with the IEC61156-9 CAT8.2 cable requirement.
  • IEEE802.3bt PoE type III 60W and IV 100W applications.
  • 22AWG solid copper wire, Skin-Foam-Skin Polyethylene isolation OD 1.64mm.
  • Aluminum foil around each pair, Tin plated copper braid for overall screen.
  • CM, LSZH (IEC60332-1-2 / IEC 60332-3-24) and CM-LSZH dual rated jacket are available.
  • OD 8.4mm.

Applications

Crxconec CAT.8 Lan cable could apply with different outlet such as keystone Jack and patch panel, faceplate and surface mount box, RJ45 Cat 8 STP RJ45 Connector is applicable with 24-26 AWG wire guage cable performed 2000MHZ(2GHZ )frequency, because of the highly specification, it usually used in the Data center or indoor working area.

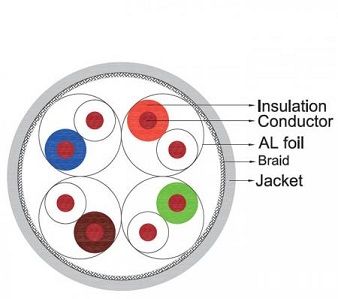

Material & Structure

Conductor: Bare Copper, 22AWG 0.63mm
Insulation: Skin-Foam-Skin PE, OD 1.65mm
Foil Screen: Aluminum / PET, T=50/12 μm
Braid: Tinned Copper, 0.1mm x 6 x 16, Min. 45% Coverage
Drain Wire: N/A
Sheath: PVC CM or CMR, or LSZH, T=0.75mm, OD 8.4 ± 0.2mm

GHMT Verified Cat.8 Copper System Certification

CRXCONEC Cat.8 channel link are independently certified by reputed laboratories GHMT in Germany, based on 2 Connector channel under 30M and follow the standard of Class I ISO/IEC TR 11801-9901 Ed.1.0 (2014-08).

Fluke Test Report

CRXCONEC Cat.8 lan cable pass fluke test with ISO standard and TIA standard, we can pass both long length meters and short length meters.

Cat.8 Channel Configuration

Here below is CRXCONEC Cat.8 channel link demonstration, it is a channel link under 30M with high speed application.

Packaging

CRXCONEC Cat.8 lan cable has been packed by plastic wrap, and it is combined with 50m or 100 for one roll, it is according to the customer's request, each rope has its own box, and also you can pack your lan cable with wooden reel, it can let your cable much easier to manage.
